Fixed LED Navigation Light IP68 10NM For Beacon With GPS And AIS Module
Product Overviews:
Combining an AIS module with a bright LED light, the DX-AISNL-01 offers an impressive visibility range of up to 10NM.
It includes a built-in AIS Type 3 transponder for dependable communication and navigation.
The weather-resistant lantern is available in colors that meet IALA chromaticity standards, ensuring compliance with maritime regulations. Furthermore, GPS synchronization provides precise timing and alignment with various navigational aids.
Features and benefits:
- Exceptional Durability: The fiberglass housing is UV-resistant, shockproof, and corrosion-proof, ensuring the lantern can withstand tough marine environments with minimal upkeep.
- Streamlined Design: Combining an integrated AIS module and LED light simplifies deployment and reduces operational complexity.
- AIS Type 3 Transponder: Features dual communication capabilities, improving maritime navigation by allowing for both data transmission and reception.
- High-Efficiency LED Array: Provides bright lighting while being energy-efficient, leading to longer operational times and lower energy expenditures.
- Visibility of Up to 10NM: Guarantees the lantern is visible from considerable distances, boosting safety and navigational effectiveness.
- Digital Sensor for Automation: Automatically detects environmental conditions to optimize energy use by turning the light on and off as needed.
- Compliant Color Options: Offered in IALA-compliant colors—white, red, yellow, and green—to meet international maritime signaling requirements
- een, ensuring compliance with international maritime signaling standards.
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass |
| Operating temperature | -20°C to +°65C |
| Humidity | 0~100% |
| IP Rating | IP68 |
| Operating Voltage | 8-32V |
| Size (mm ) | 240*240*267mm |
| Life time | 10 years |
| Weight | ≤4.5KGS |
| Optical Spec | Light Source | LEDs |
| Light color | red/green/white/yellow |
| Flash syncronization | GPS synchronized flash |
| Visible Range | up to 10NM available |
| Horizontal Output(degrees) | 360° |
| Vertical Divergence(degrees) | ≥2.5° |
| Light value | 256 adjustable |
| Brightness | Adjustable |
| Operation Mode | Built-in sensor, dark and day adjust automatically |
| LED Life Experience(hours) | >100,000H |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK |
| Frequency error | ±0.5kHz |
| Transmission power | ≤6W |
| Average power consumption | ≤0.05W |
| Message format Messages | No. 21 and NO.6,message periods are adjustable |
| Operating type | Type three (SOTDMA, autonomous working mode) |
| AIS antenna | Included, high gain omnidirectional antenna |

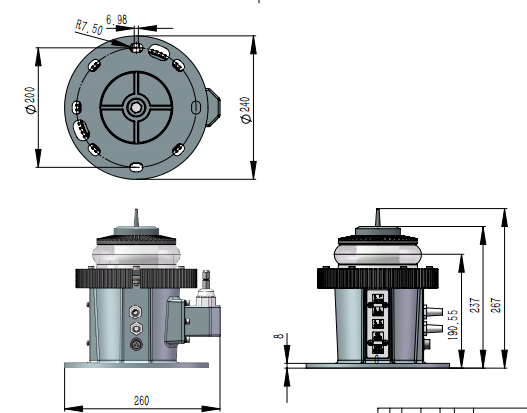

Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
